Vauth-Sagel Wari Corner Swing Out Corner Units

Vauth-Sagel Wari Corner Swing Out Corner Units

Storage solutions are our speciality and we have ensured that this section is full of innovative ideas for your projects. You’ll find products that allow users easay access to store cupboards with a modern and stylish delivery, our precision engineered solutions are finished to a premium standard and they all come with free technical advice from our fully trained experts.

Vauth-Sagel have been delivering German excellence for over 50 years.

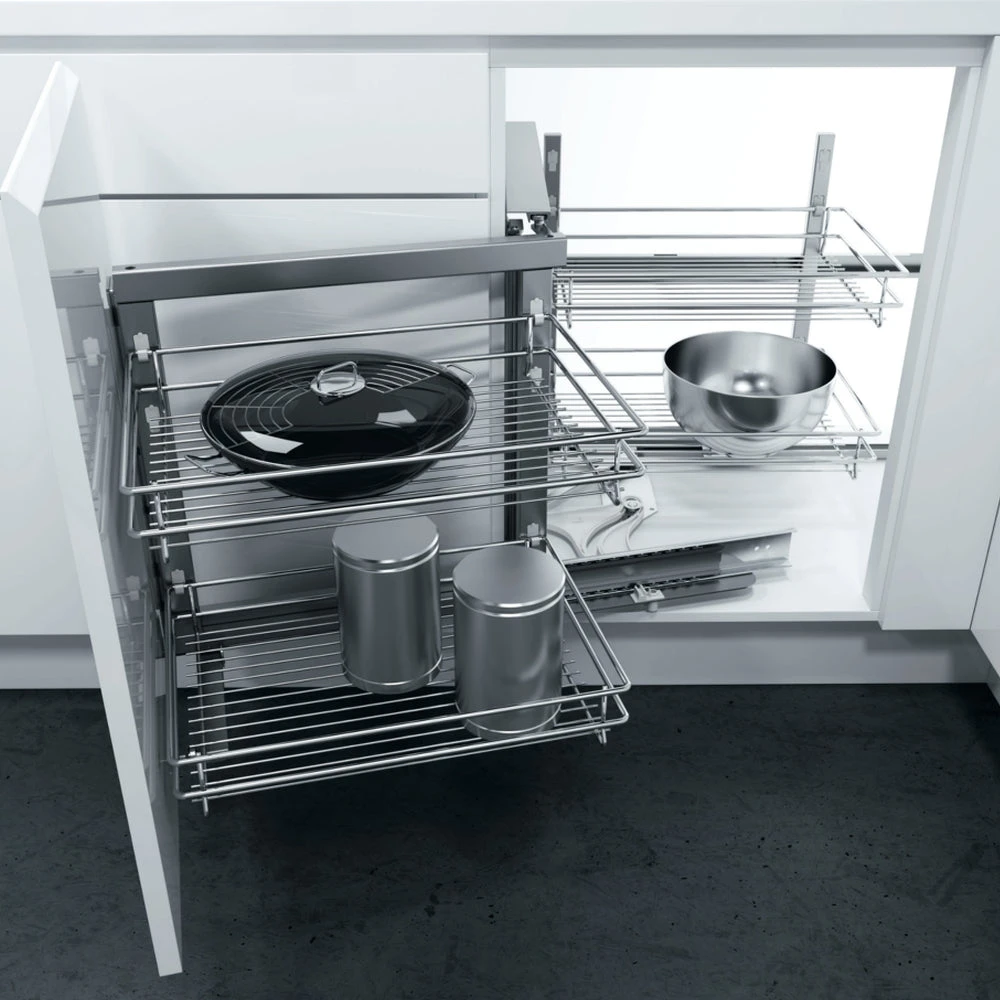

The clever storage unit is designed so that the rear baskets automatically follow the front baskets when the door is opened and pulled away from the cabinet. Available in 800, 900 and 1000mm cabinets in achoice of basket designs.

LEFT HANDED VERSION SHOWN IN IMAGE

Technical Specs

• Vauth-Sagel soft close magic corner
• Door front fixing with intergrated 3D adjustment and central height alignment allows the swing out corner unit to be fitted perfectly
• Upon opening, the front baskets automatically swing away leaving free access to the back basket, amking all baskets easily accessible when the unit is fully opened
• Intergrated damping ensures quiet smooth closing of the pull out
• Classic chrome linear wire baskets supplied.

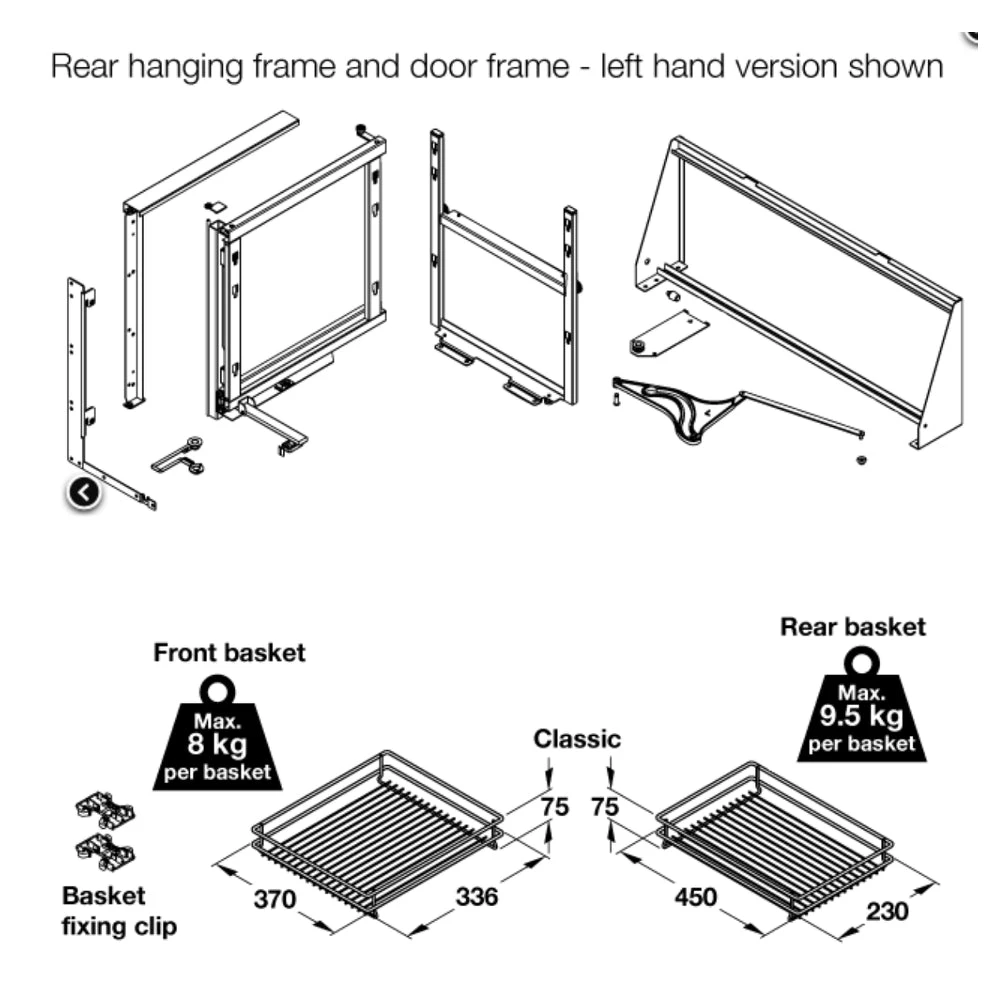

Set Includes

Frame Set

• Rear hanging frame and base mounting track; silver epoxy coated tubular steel
• Door frame with pivot; silver epoxy coated tubular steel
• Back frame; silver epoxy coated tubular steel
• Door frame follower; fibre glass improved plastic
• Door panel hanging plates; silver coloured steel, 3 way adjustable, 800mm version to suit 400mm door widths, 900/1000mm version to suit 450, 500 and 600mm door widths
• Fixing screws and fittings instructions

Basket Set

• 2 x Storage baskets (rear)
• 2 x Storage baskets (door)
